Plastic composite polymer materials TECATEC

Medical grade PEEK composite

TECATEC MT CW

TECATEC PEEK MT CW50 black and TECATEC PEKK MT CW60 black are carbon fibre composite materials characterised by extraordinary mechanical strength and high thermal dimensional stability.

The fields of application are very often within traumatology, with applications like internal fixation systems (target arms), external fixation systems as well as other structural elements.

Biocompatibility

TECATEC PEEK MT CW50 black / TECATEC PEKK MT CW60 black are suitable for all medical applications that require biocompatibility with limited contact of up to 24 hours with skin and tissue, and, where applicable, indirect contact with blood.

TECATEC PEEK MT CW50 black material is tested accordingly to ISO 10993.

Key characteristics

Ensinger carbon fibre composite materials comprise a thermoplastic matrix and a woven fabric of carbon fibre bundles. This combination ensures significantly higher tensile and flexural strength in comparison to fibre reinforced extruded materials. These lightweight composites offer good chemical resistance and are also permeable to X-rays. Other properties include:

Outstanding strength
Excellent thermal dimensional stability
Good dimensional stability
Low water absorption
Corrosion resistance
Excellent resistance to hot steam autoclaving
Excellent chemical resistance

Steam sterilisation resistance

Hot steam sterilisation: According to several tests performed by our customers and partners, TECATEC PEEK MT CW50 black shows no significant loss of mechanical properties or other negative influences like discolouration, even after 500 sterilisation cycles. In several applications it has proved its suitability for clinical use.

TECATEC MT materials

The matrix polymer used in TECATEC PEEK MT CW50 black is VICTREX PEEK, which is compressed with woven carbon fabric mats. A special coating on the fabric reduces the number of faults. The carbon fibre content of 50 per cent offers extreme torsional stiffness and practically eliminates warping despite repeated sterilisation.

TECATEC PEKK MT CW60 black comprises a polyetherketoneketone (PEKK) matrix, laminated with 60 per cent carbon fibre fabric. The manufacturing process achieves excellent fibre and matrix intergration.

TECATEC PEEK MT CW50 black and TECATEC PEKK MT CW60 black are produced to customer order with maximum focus on the customer's dimensional needs. Ensinger is able to offer TECATEC PEEK MT CW50 black in 1 mm steps of panel thickness, allowing the greatest possible material and cost savings.

Medical grade plastic PEEK composite material TECATEC PEEK CW

TECATEC PEEK MT CW50 black

The specially designed materials of Ensinger's TECATEC composite family offer extreme mechanical strength and thermal dimensional...

TECATEC PEKK MT CW60 black

This carbon filled composite is based on PEKK, and offers higher thermal stability than PEEK based composites. Due to the 60% reinforcement...

PEEK Composite plastics in medical devices

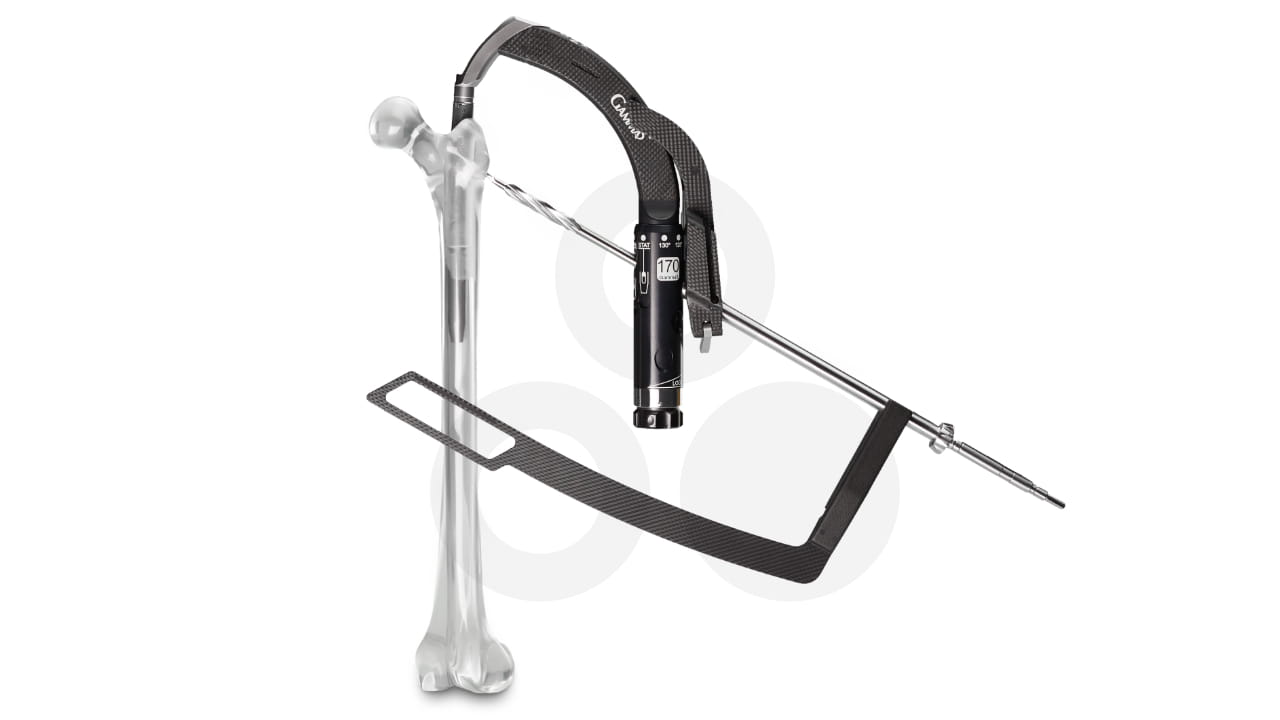

Target arm

made of TECATEC PEEK MT CW50 black

Orthopaedic Trauma Internal Fixation Systems

The goal of orthopaedic trauma treatment is to restore a broken bone to its correct position and orientation. When this is done by means of surgical intervention, fixation systems are used to secure the bone in the anatomically correct position. Manufacturers of such internal fixation systems need to meet many and exacting requirements in terms of function, weight and appearance, at the same time as keeping an eye on the overall costs in view of increasingly tight budgets.
