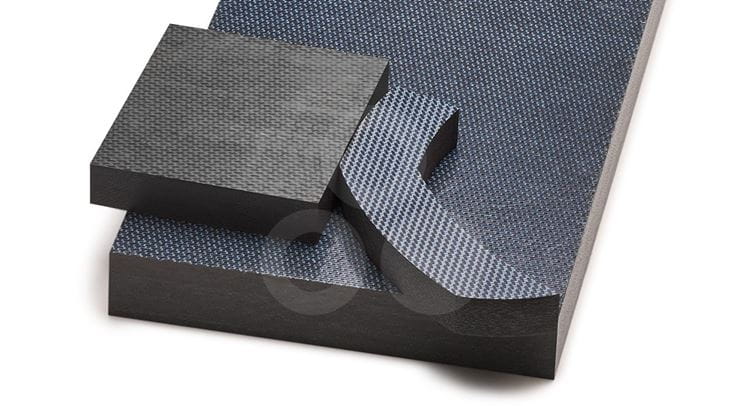

Composite plates

For applications where the mechanical properties of unreinforced or short-fibre-reinforced semi-finished plastic products such as extruded sheets or rods are not sufficient, continuous-fibre-reinforced composites can be an excellent alternative. Thanks to continuous fibre reinforcement (usually woven glass or carbon fibre fabrics), these sheets offer high mechanical properties otherwise only achieved by metals, while being significantly lighter than them.

Thanks to the use of thermoplastic matrix materials, the sheets have the same advantages as unreinforced thermoplastic sheets, such as high impact strength, consistent mechanical properties over a wide temperature range, chemical resistance and high elongation at break. In addition, these sheets are characterised by their low thermal expansion and very high mechanical properties. The matrix material can be selected according to the application and covers a wide range of customer requirements.

Sheets of continuous fibre-reinforced thermoplastics can be processed into finished parts of excellent quality with minimum tolerances by waterjet cutting as well as by conventional machining methods. It is important to note that suitable equipment and processing parameters are required.

By using thermoplastic composite materials, sheets up to 95 mm thick can be produced. In addition to the standard materials, customised material combinations or fibre angles are also possible on request.


Benefits of Composite plates

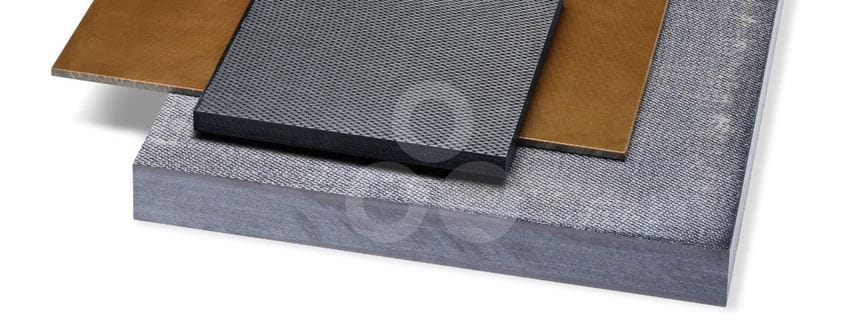

Portfolio

Our thermoplastic composite plates can be supplied in a thickness ranging from 1 mm to 95 mm with maximum dimensions of 525 x 625 mm.

Standard products are woven glass fibre reinforced PEI as well as woven carbon fibre reinforced PC and PPS. Other matrix and fibre combinations, fibre architectures or customised fibre lay-ups can be offered upon request.

As light as plastic, as stiff and strong as metal

The composite plates have densities between 1.5 and 1.8 g/cm³, giving them a similar specific weight to unreinforced or short fibre-reinforced plates. Nevertheless, the reinforcing fibres increase their mechanical properties dramatically to a level similar to metal. Compared with unreinforced polymer plates, continuous fibre-reinforced plates achieve values that are 5 times higher for both tensile strength and Young’s modulus.

Low linear thermal expansion

Continuous fibre-reinforced thermoplastics exhibit extremely low coefficients of thermal expansion (CTE) in a range around 5x10-6 K-1. This property is of great importance for applications in which the parts are subjected to temperature fluctuations over a broad range and where high precision is required.

Outstanding mechanical properties

The thermoplastic matrix gives the plates high impact toughness, with the value significantly higher than in plates with a thermoset matrix such as epoxy or phenolic resins. Moreover, the high elongation at break of the thermoplastics ensures tough, non-brittle fracture behaviour. For some applications, the intrinsic vibration damping of the matrix can also be a relevant advantage.

No minimum order quantity

Achieve your goals in thermoplastic composites without long and costly development times. For our TECATEC PC, PEI and PPS plates, no minimum order quantity is required.


Our Composite Plates portfolio

new

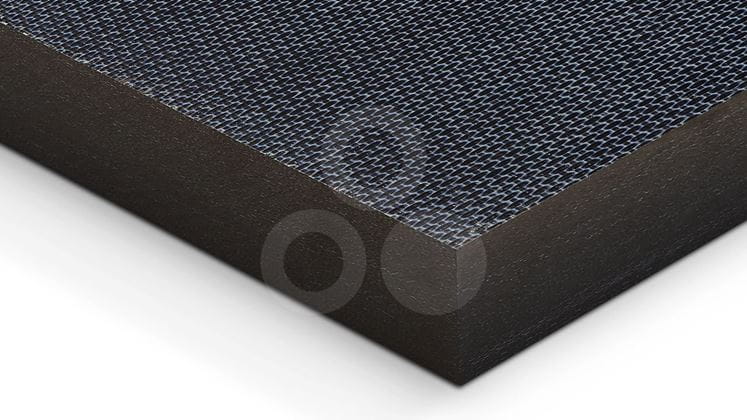

TECATEC PEEK CW50 PL V01 natural

This composite plate is based on the high-performance polymer polyetheretherketone, also known as PEEK, and has been reinforced with 50 vol% carbon fibre fabric ...
new

TECATEC PPS CW50 PL V01 natural

TECATEC PPS CW50 PL V01 natural is a carbon reinforced plastic material filled with 50 vol% carbon fibre fabric and is based on the semi-crystalline high-temperature thermoplastic ...
new

TECATEC PC CW50 PL V01 natural

TECATEC PC CW50 PL V01 natural completes Ensinger's TECATEC high performance composite family with a polycarbonate plate. This polycarbonate composite consists of a polycarbonate ...

Case Studies OF Thermoplastic composite plates

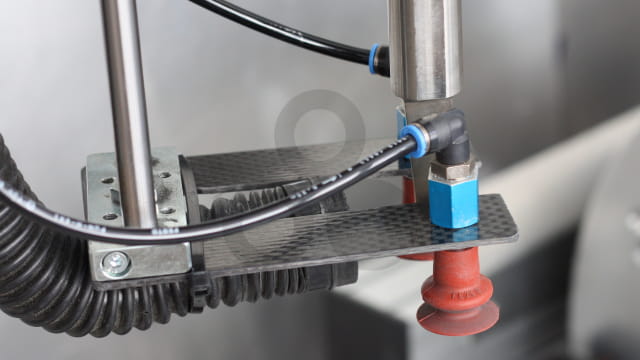

Robotic grippe made of composite PC CW50

Robot head: gripper

made of TECATEC PC CW50 black composite plates

Robotic gripper for a handling device

Advanced automation often requires customised solutions, in particular for the heads of the robots. Typical applications are automated solutions for handling devices and respectively their components such as the grippers.

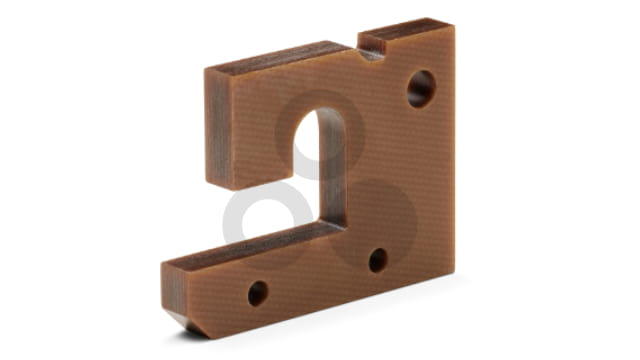

J-Hook

made of TECATEC PEI GW50 natural composite plates

Structural component for an airplane seat («J-hook»)

The aircraft industry prevails the highest requirements for installed materials: Low weight, high mechanical properties, fatigue resistance as well as stringent FST requirements are mandatory. Aircraft interior applications often see the use of glass fibre reinforced polyetherimide (PEI).

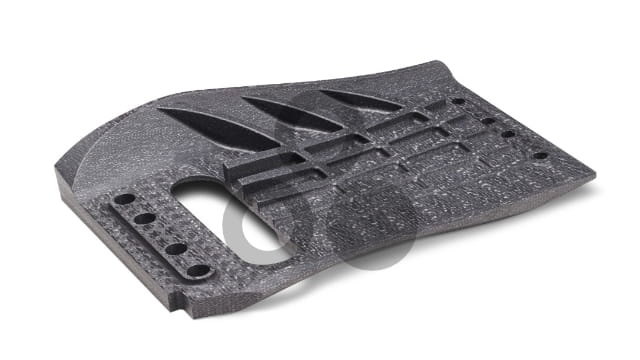

Winglet structure

made of TECATEC PPS CW50 black composite plates

Structural part for a light airplane («Winglet structure»)

Structural airplane parts ensure planes spend every possible minute up in the air. Every part must always work without fault and since in the aerospace industry every single gram is of importance, excessive weight reduces the payload and increases the fuel consumption. One example of these parts are so called "Winglet structures", which are used at the tip of the wing of light airplanes or unmanned aerial vehicles (UAV).
