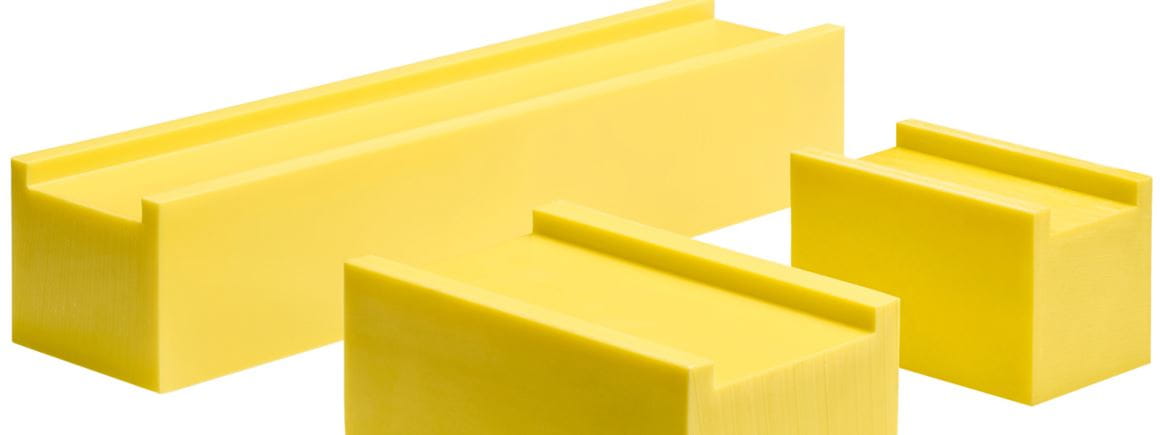

stress reduction block made of TECARIM 1500 yellow

Spring relief blocks made from TECARIM:
Security for people and machinery

In tools weighing several tonnes, such as for presses, relief must be provided for the spring assemblies during storage. This can either be done through the use of compression springs or spring relief blocks which are made from wood, metal, or a variety of plastics.

If the relief elements are accidentally not removed before the tools are taken into operation, they can be subjected to severe stresses, particularly on the first pressing movement. This can cause them to bend or break or in the worst case, an explosive rupture can occur.

As a result the tools can be damaged, but the potential danger for employees is the greater risk here.


Deformation instead of brittle break

Spring relief blocks made from TECARIM 1500 yellow demonstrate extreme toughness combined with high mechanical strength. Therefore, if a press is inadvertently closed with the reliefs blocks still inside, they will not break or burst but instead deform.

In addition, the tool will not be damaged if a relief block has been positioned above a tool recess (pocket).

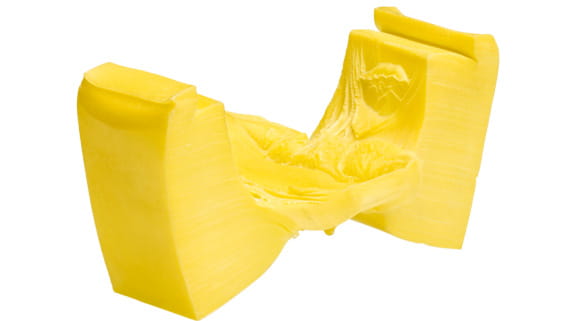

stress reduction block pressed made of TECARIM 1500 yellow

Sufficient strength

Despite the elasticity of TECARIM which allows the material to withstand high stress levels, stacking tools weighing several tonnes on top of each other is not a problem. A contact pressure of up to 12 N/mm2 is possible.

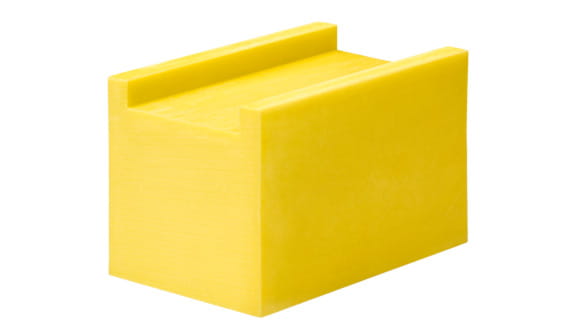

stress reduction block unpressed made of TECARIM 1500 yellow

Practical and time-saving: Simple to use without pre-treatment

The material TECARIM is modified with an elastomer content tailored to the application. The material properties (e. g. toughness) exist both in the conditioned and non-conditioned state. Spring relief elements made from TECARIM do not need pre-treatment before use. In-house conditioning or immersion in water before use is not needed (as with some alternative materials offered on the market). This is a main advantage of this polymer compared to other polymer materials.

No safety check required

A further advantage of using the TECARIM for spring relief blocks is that they are not subject to regular TÜV [Association for Technical Inspection] inspections. In addition, no documentation has to be produced. In contrast, gas pressure struts used for relief purposes must be inspected on a regular basis and records must be kept for them.

Options

  • TECARIM relief blocks are supplied in a yellow signal colour.
  • Different dimensions are available – and if necessary finished parts as per the works standard and customer drawing.
  • Cut lengths are available either raw or machined.
  • Height should not be more than twice the diameter/side length.
