Alternative to aluminium LED heat sinks made from thermal conductive PPS

Thermal development in LED lights need heat sinks

LED lights are being used more and more as substitutes for conventional light bulbs and neon lights  in the aerospace industry. Though LED lights generate much less heat than conventional systems, they nevertheless need heat sinks because the heat will concentrate under the LEDs. Therefore, to avoid this potential fire risk the heat must be dissipated.

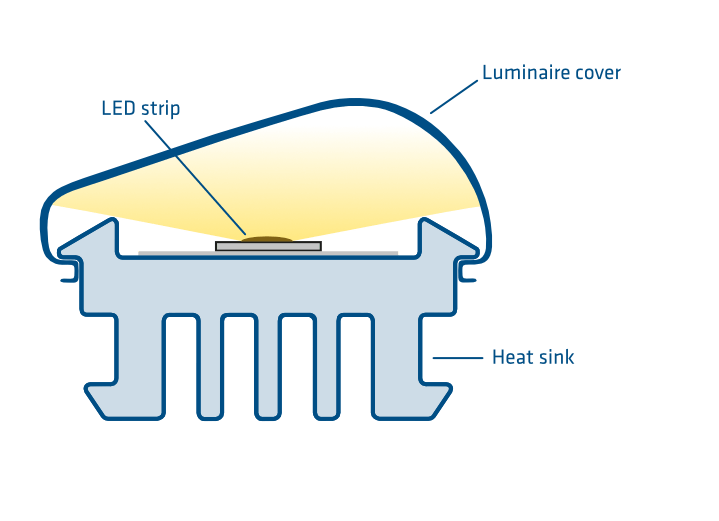

In LED lights which are constructed in rows, the LED chips are set on circuit boards. These LED strips are mounted on a heat sink to dissipate the targeted heat effectively. Typically a heat sinks holding profile is produced from aluminium, however, in many cases plastic profiles can replace the aluminium counterparts as the LED chips have a comparatively low heat emission as well as an advantage through weight reduction and life cycle costs.

Metallic holdings need grounding

In metal heat sinks electric voltages may occur, which increases the risk of short circuits and thus the risk of fire. For this reason, in aviation, all metal brackets with electrical plug connections must be grounded. This means more work on the material side, because often a fastening screw with the necessary corrosion protection measures is not sufficient. If the metallic mountings are located on non-conductive structures, an additional grounding cable is required, which must of course also be fixed. These grounding measures cause additional weight due to the material used and the necessary corrosion protection. In addition, valuable installation space is required.

Planning, installation and documentation steps are also necessary for the use of such grounding cables: An entry in the electrical diagram is necessary, a resistance measurement must be defined for each grounding cable in the test plan and the contact resistance of each earth connection must be recorded. At regular intervals, the grounding systems are maintained and tested. This results in high life cycle costs for the airlines.


Precision profiles made from PPS replace Aluminium


A good substitute for aluminium in heat sinks are high-performance plastics with thermal and, if necessary, static dissipative properties. In the lighting units described here, the heat sink is made of PPS, and an extruded profile made of polycarbonate is used for the lamp covers.

The development and production of the profiles for the heat sink and the luminaire cover is carried out by the Ensinger "Profiles & Tubes" division. Close cooperation and the exchange of knowledge within the Ensinger divisions leads to rapid development results.
